Brands HMINLED
Product Code: HM-DRIVER-FULL
Availability: 1000
$6.59 $8.59
Ex Tax: $6.59

Available Options

Qty

This product has a minimum quantity of 5
High PF, wide input from AC85-265V, over-voltage surge 2500V.
Perfectly fits those countries where there is a huge float in voltage, such as India, Africa, and South America.

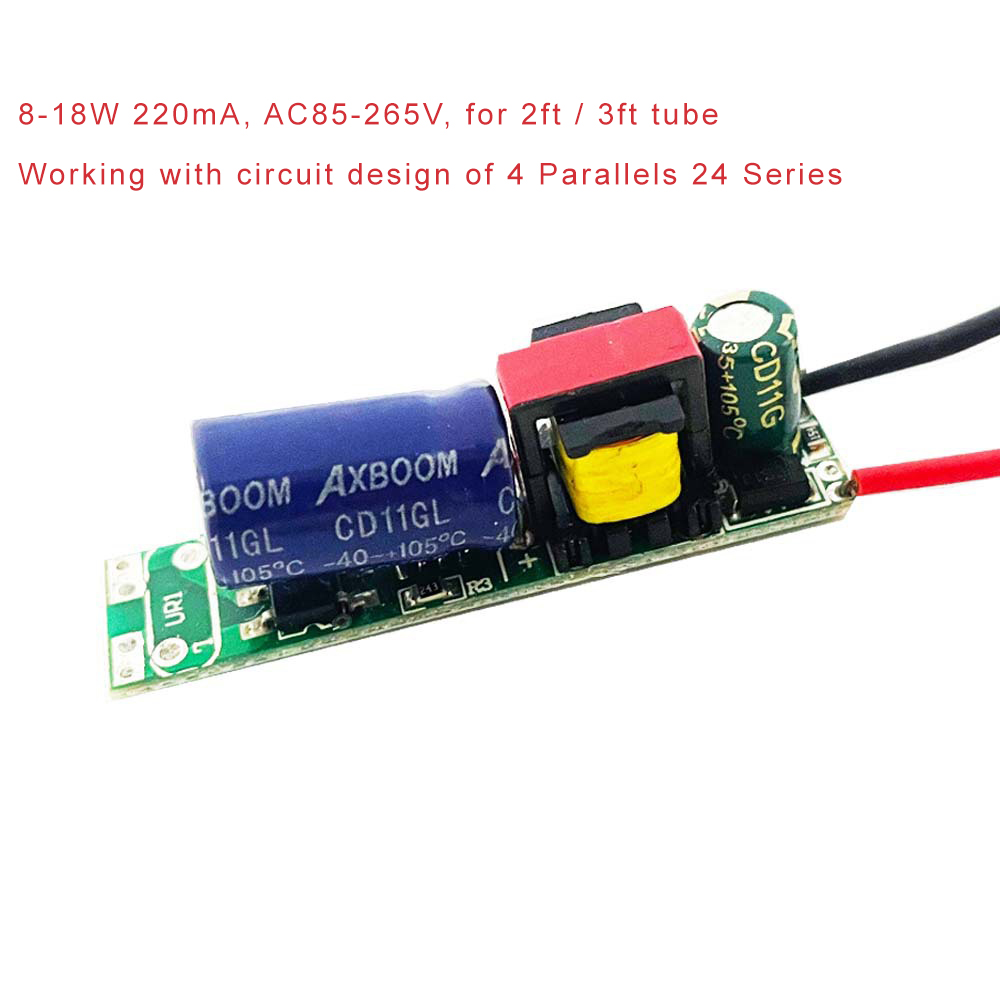

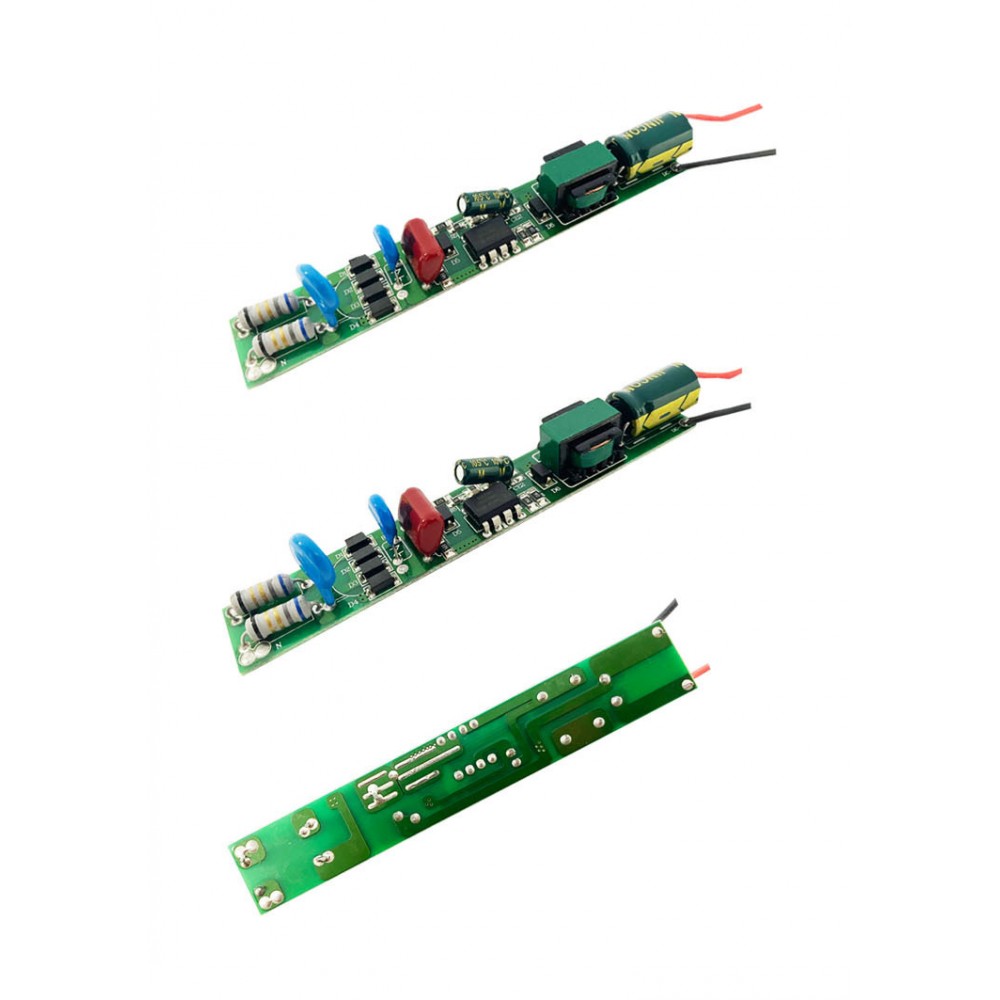

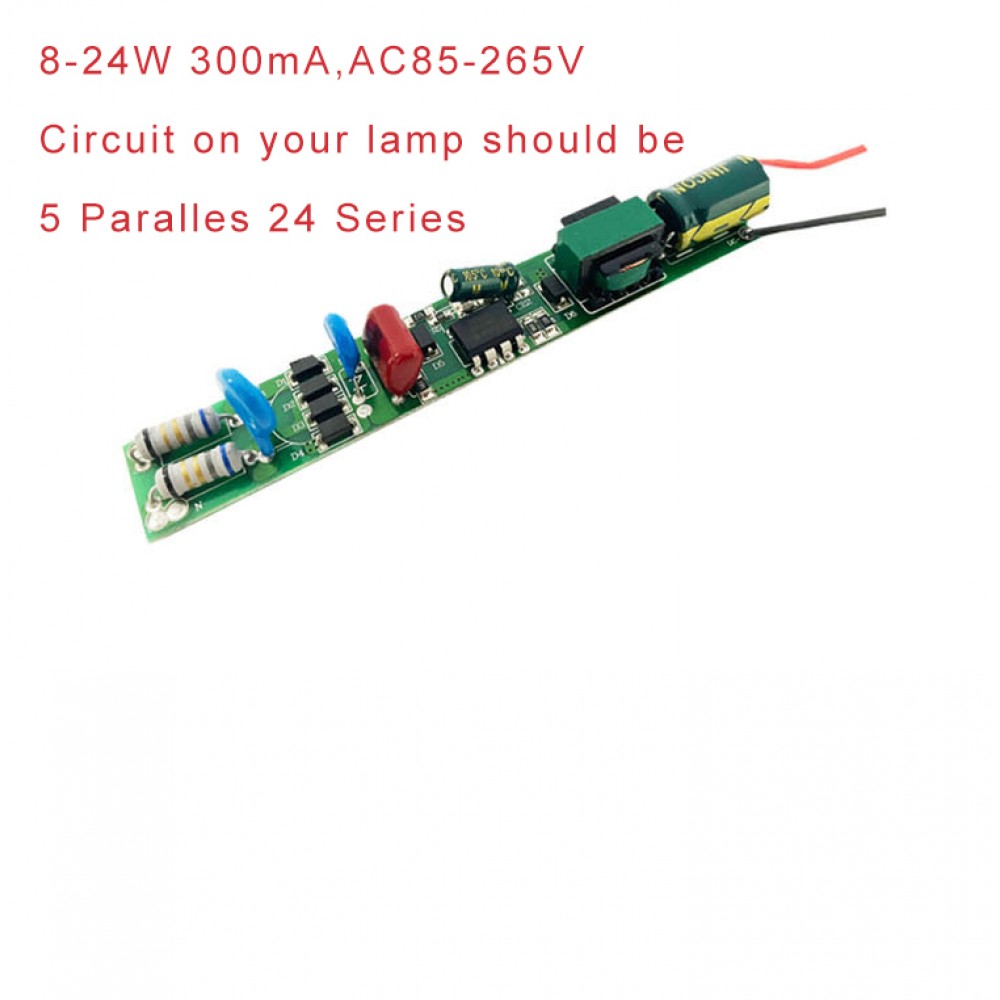

8-18W & 220mA8-24W & 300mA

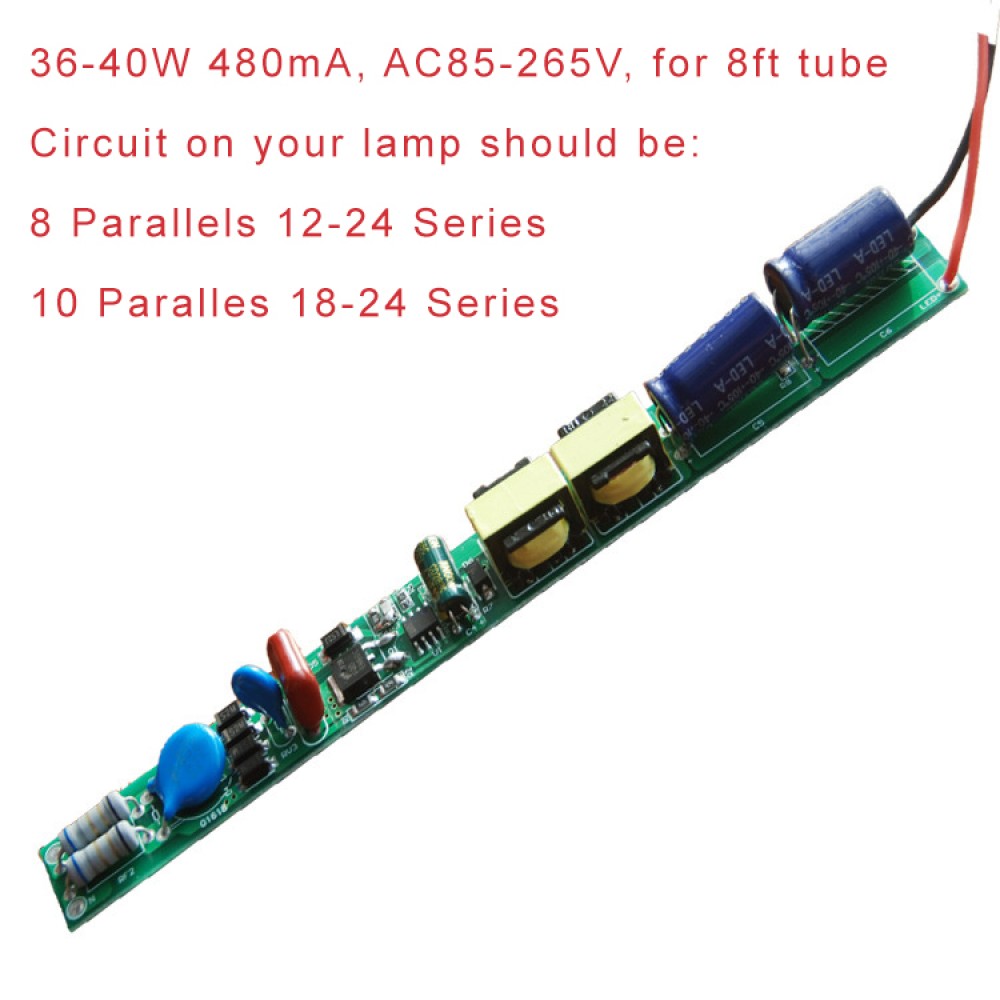

36-40W & 480mA

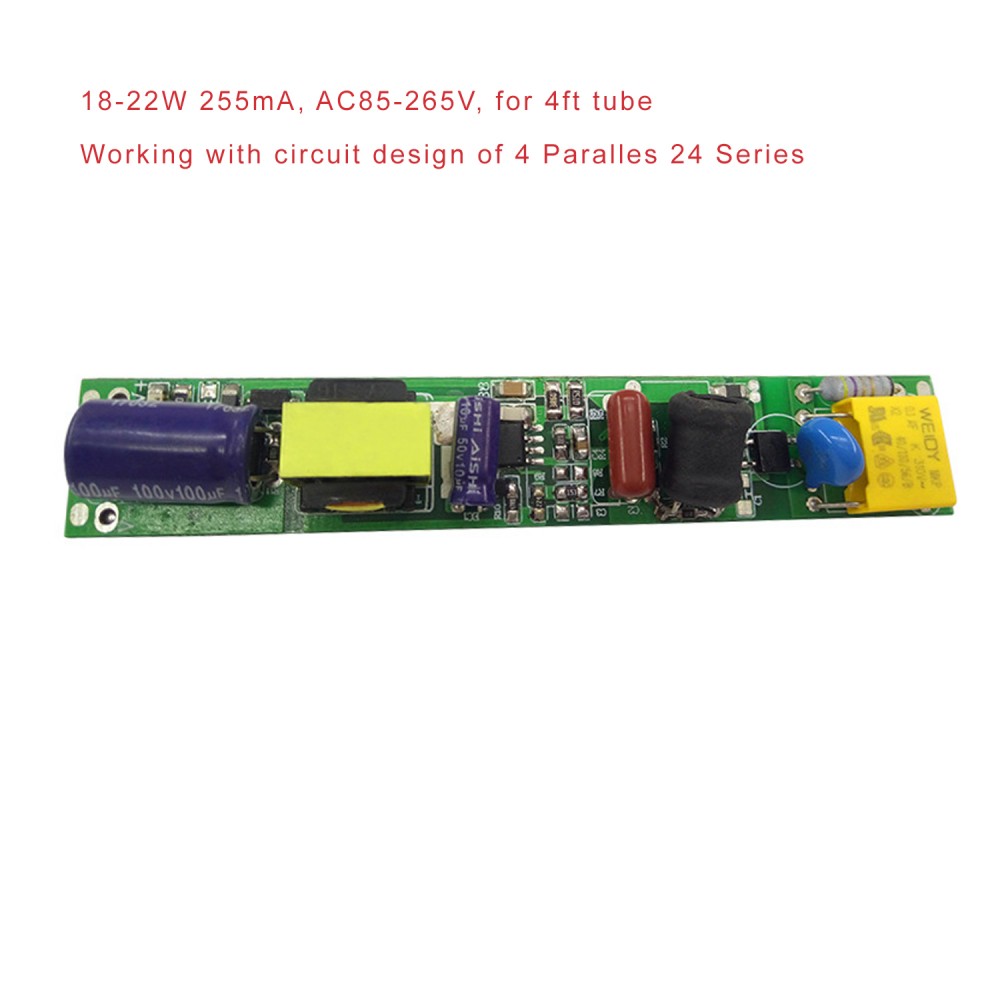

18-22W & 255mA
Input Voltage(VAC)
85V-265V
85V-265V
85V-265V
85V-265V
Output Voltage(VDC)
27-85V30-85V
36V-85V
70-85V
Output Current (mA)
220mA300mA
480mA
255mA
Typical Power (Watts)
8-18W8-24W
36-40W
18-22W
Typical Efficiency (%)
91%
91%
91%
91%
Power Factor (PF)
0.95
0.95
0.95
0.95
THD
≤20
≤20
≤20
≤20
L*W*H
47*13 mm / 1.85*0.52''100*15mm / 3.9*0.59''
151*15*12 mm / 5.9*0.59*0.47''
100*15mm / 3.9*0.59''
Applicable to
2ft,3ft,4ft T8 T10 T12 LED Tube Light
2ft,3ft,4ft T8 T10 T12 LED Tube Light
8ft T8 T10 T12 LED Tube Light
2ft,3ft,4ft T8 T10 T12 LED Tube Light


1. Ultra-small size design, low noise, and safety features.
2. Adopt high-efficiency, low-consumption, and stable imported chips to achieve energy saving and environmental protection purposes
3. Constant output current. Ensure the safety and stability of LED use, improve the light efficiency of LED, and reduce light decay
4. Overload, overvoltage, short circuit, and overcurrent protection ensure power supply safety
5. Wide voltage AC input, no need to distinguish between positive and negative poles
6. The red at the output is positive and the white is negative.

Short circuit protection, open circuit protection, over-voltage protection, and overheat protection, make it more stable and safer when working

Use high-insulation PCB double-panel, high-conductivity copper foil lines, and reasonable design of the circuit to ensure efficient driving

Related Specification of Product
Power 8w - 40w
Primary Features To repair those LED tubes that are broken
Customized Service Accepted ? Yes
Working Current 200mA - 500mA
Trade Terms
Item Location The United States and China
Retail Available ? Yes
Wholesales Available ? Yes
Free Shipping ? Yes
IOSS Number For customers from Europe, tell us your IOSS while ordering
